Graphic Editing Tools

The changes on the grid come about within an environment characterized by a series of tools manual and automatic correction according to different criteria. The main conditions are defined in:

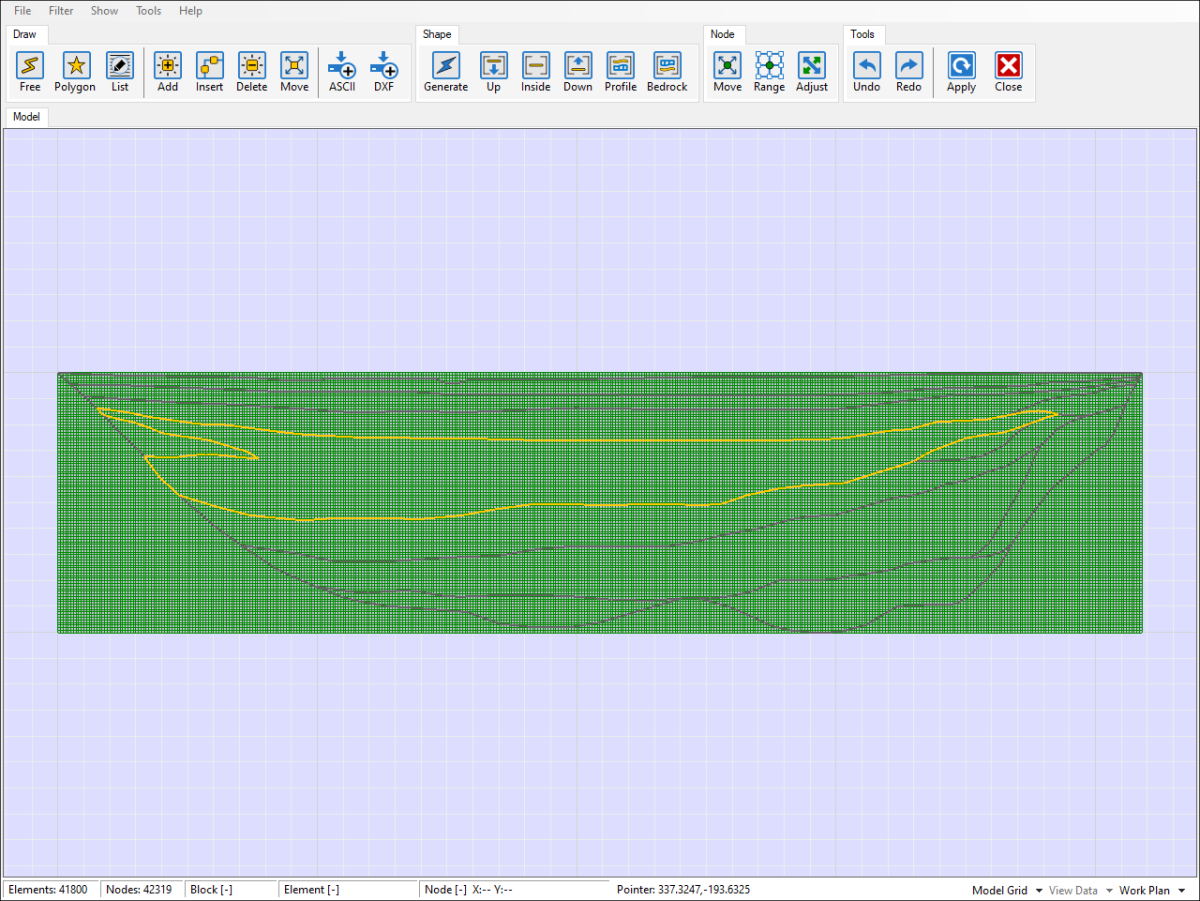

  • GeoTable: is an open polyline. If it is generated changes the grid geometry.

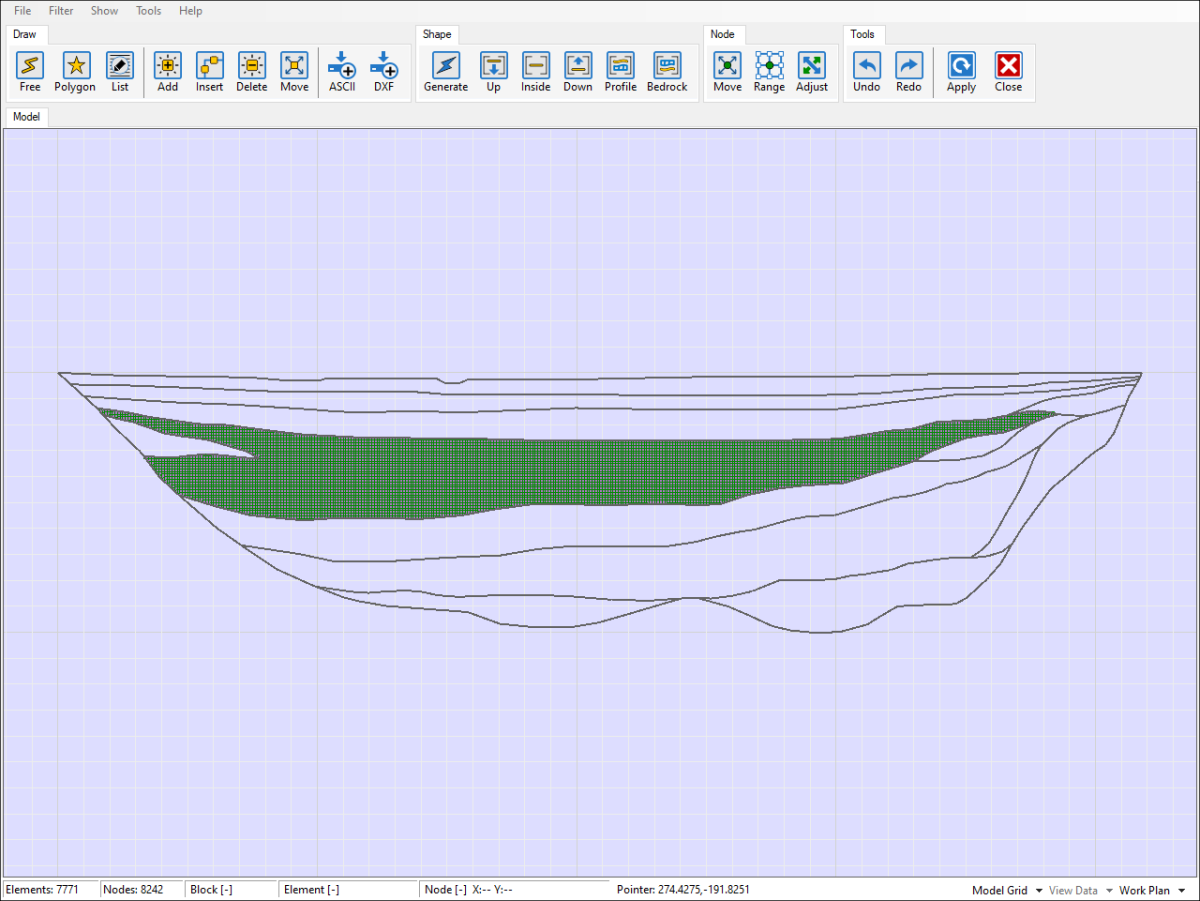

  • GeoRegion: is a closed polyline. If it is generated changes the grid geometry and identified a region enclosed by the polyline

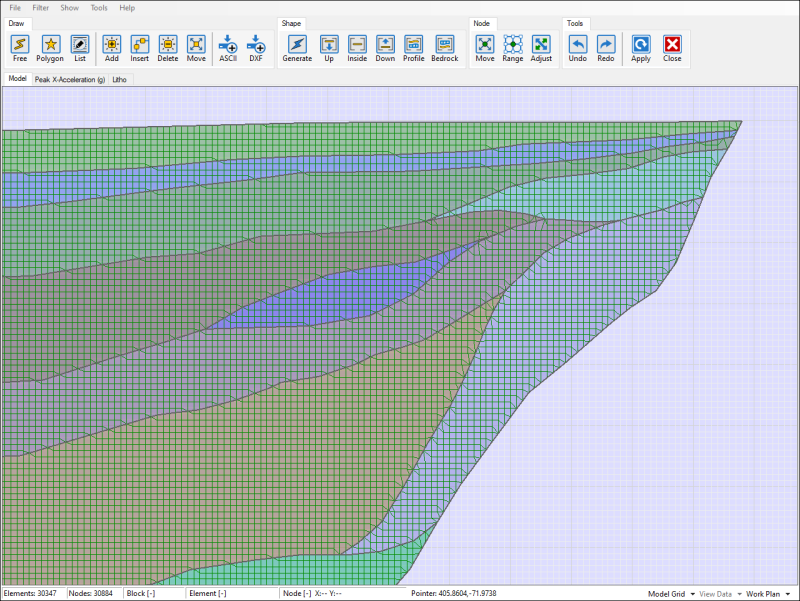

Whit the use of the graphics tools you can define any stratigraphic contact and model the grid to get a better resemblance to the real ground conditions.This allows for a better performance in the dynamic analysis.
